تفاصيل المنتج:
|
| اسم المنتج: | مستشعر التعكر | قياس التكنولوجيا: | ضوء شعاع مزدوج الأشعة تحت الحمراء مبعثرة الضوء |
|---|---|---|---|
| نطاق القياس: | 0.01 ~ 4000ntu | دقة: | ± 2 ٪ |
| دقة: | أفضل من 5.0 ٪ من القيمة المقاسة أو 0.3ntu ، أيهما أكبر | تواصل: | RS485 Modbus-RTU |
| وقت الاستجابة: | T90 ＜ 60s | ضغط العمل: | ≤4bar |
| درجة حرارة التشغيل: | 0 ~ 45 ℃ | مادة الصدفة: | قياسي SS 316L |
| درجة الحماية: | IP68 | كابل: | 10 أمتار |
| إبراز: | Infrared turbidity sensor with self-cleaning,Turbidity analyzer 0.01-4000NTU range,Self-cleaning turbidity sensor with brush,Turbidity analyzer 0.01-4000NTU range,Self-cleaning turbidity sensor with brush |
||

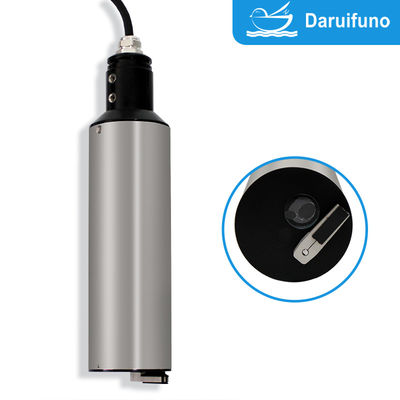

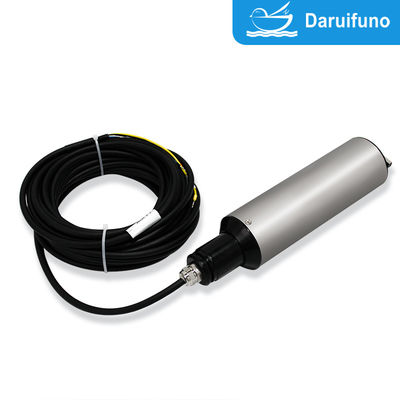

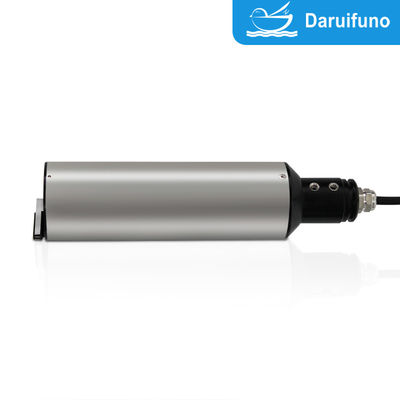

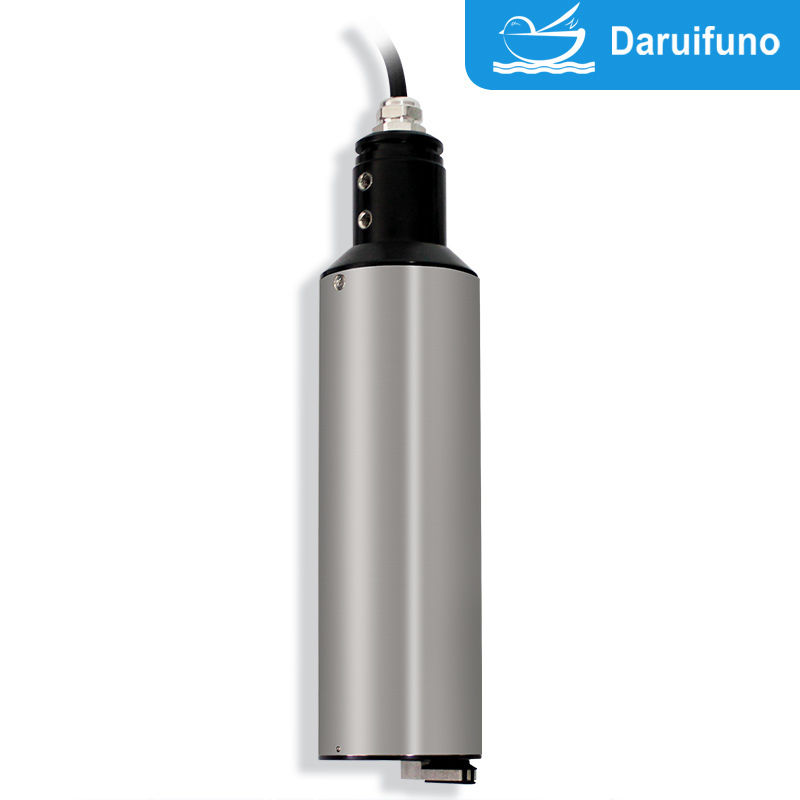

| Sensor Information | Infrared Turbidity Sensor |
|---|---|
| Model | OPTU311 (with brush) |
| Measuring Technology | Infrared scattering principle |
| Measuring Range | 0.01~4000NTU |
| Resolution | 0.01NTU |
| Accuracy | ±2% of measured value or ±0.1NTU (whichever is greater) |
| Communication | RS485 MODBUS-RTU |
| Response Time | T90 < 60s |
| Calibration Method | Multi-point calibration; factor correction |
| Working Pressure | ≤4Bar |
| Sample Flow Rate | No dependency |
| Cleaning Method | Equipped with cleaning brush, automatic cleaning under water |
| Working Temperature | 0~45°C (no freezing) |
| Storage Temperature | 0~60°C (no freezing) |
| Main Material | SUS 316L stainless steel (Titanium customized option) |
| Dimension | Φ60mm*L265mm |
| Mounting | Horizontal installation (special accessories required) |
| Protection Grade | IP68 |
| Power Supply | 9~24 V DC |
| Power Consumption | 1.5W |
| Weight | 800g |
| Cable | Standard 10 meters |
